SMT ASSEMBLY SERVICES: What we offer

SMT Production Capabilities

Turnkey

Turnkey Solution

We offer state-of-the-art SMT production line allowing us to offer customers a complete one-stop solution for turnkey projects, right from design to assembly to final packaging.

Our PCB SMT manufacturing plant has extensive flexibility and high accuracy.

Expand

Expandable

Our SMD assembly line promises extensive flexibility and high accuracy, and can easily be expanded for higher production volumes at any stage, should customer requirements demand an increase in production capability.

Modulat (1) (1)

Modular

Expandtion is possible as our SMT system is modular, and production can be doubled within a day by installing additional modules.

SMT ASSEMBLY SERVICES

Contact us for all your SMT manufacturing requirements,
click here to send an enquiry


Pcb Manaufacturing Plant (1)

FUJI AIMEX3C SMD

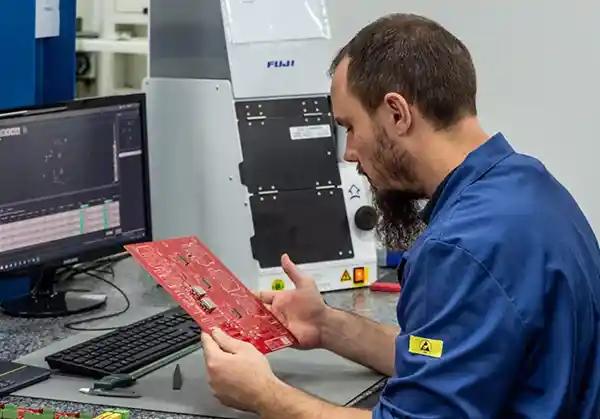

Technician With Pcb

FUJI AIMEX3C SMD

At the heart of the line is a Fuji AIMEX3C SMD placement machine, capable of handling up to 130 different SMD components (on tape or reels) from 0402 (01005”) up to 74 mm², with 0,2 mm pitch at accuracies of 20 microns, and speeds up to 26 000 cph (components per hour)

Transitor Icon Copy

Component Placement Speed

The Aimex3c SMD can place 26,000 components per hour

Accuracy Components Copy

Placement Accuracy

The Aimex3c SMD Places components with an accuracy of 20 microns

SPEEDLINE MPM 100 STENCIL PRINTER

In order to keep tight control on quality, the company also added a Speedline MPM 100 stencil printer together with an in-line TRI Model TR7007 Di 3D SPI (solder paste inspection) machine.

The system is capable of fully checking all solder paste printed within 15 seconds per panel, and automatically rejecting any out-of-specification prints, thus ensuring 100% perfect solder paste printing.

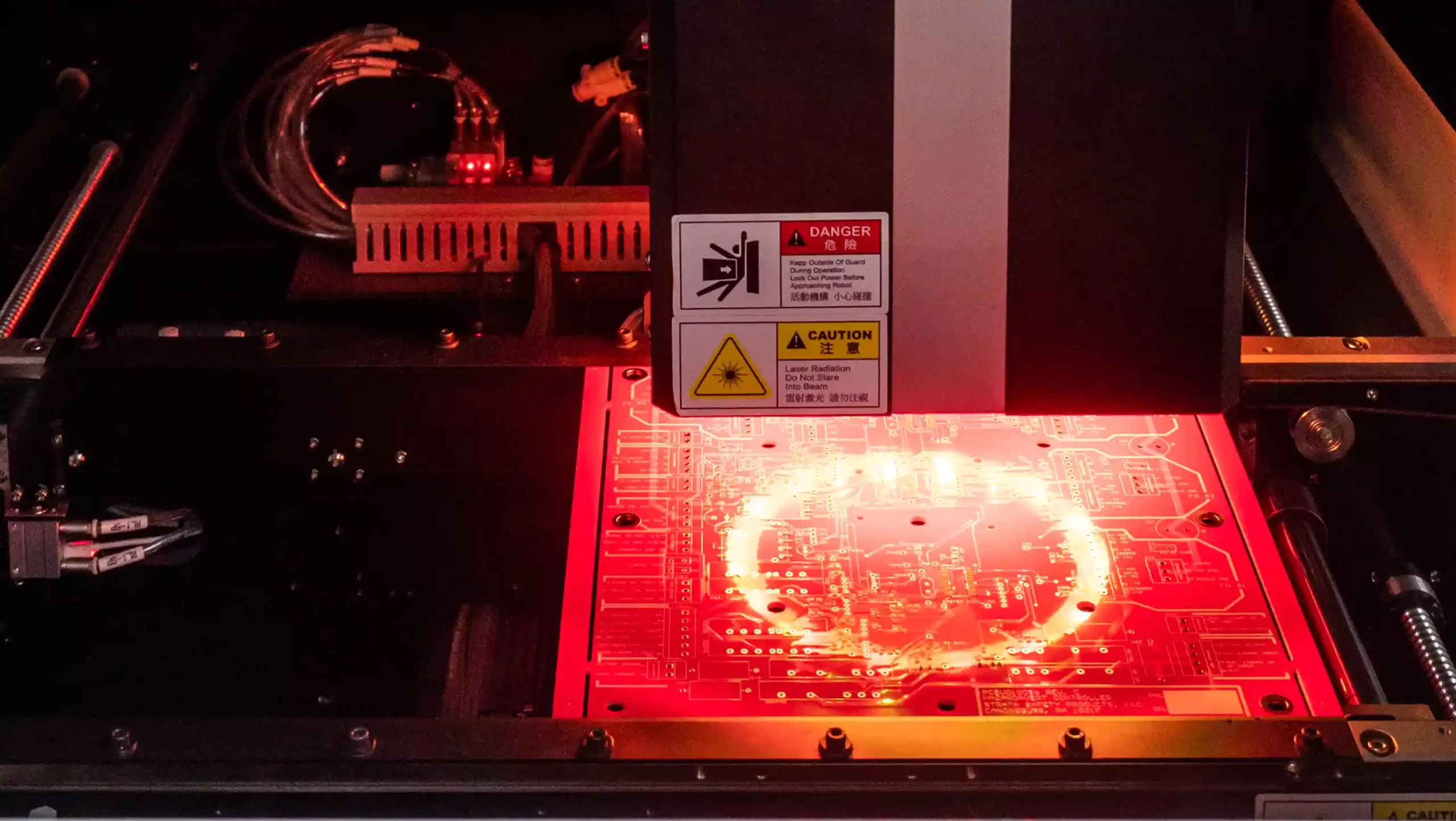

A TRI Model TR7700QI 3D AOI (automatic optical inspection) system is installed at the end of the line, to not only check for correct component placement, but also for correct solder joints on every PCB, all in less than20 seconds.

Pcb Inspection
